Stacker (Movable)

Clients can avail a broad spectrum of high grade Industrial Stackers for using in the bulk material handling applications. The range we offer under this category includes Manual Stackers, Battery Operated Stackers and Semi Electric Stackers. All the offered products are fabricated from the high grade factor inputs for ensuring easy and convenient transportation of products. Clients can avail this range in the desired specifications at the industry leading prices from us.

Hand Stacker

We offer hand stacker which completely relies on manual forces for the lowering and lifting of loads. We offer hand stackers which are used to lift capacities at variable heights with feasibility of operations. These are made in various specifications based on the requirement of the client. They are also offered at affordable prices. They are easy in operation and known for its feature like portability.

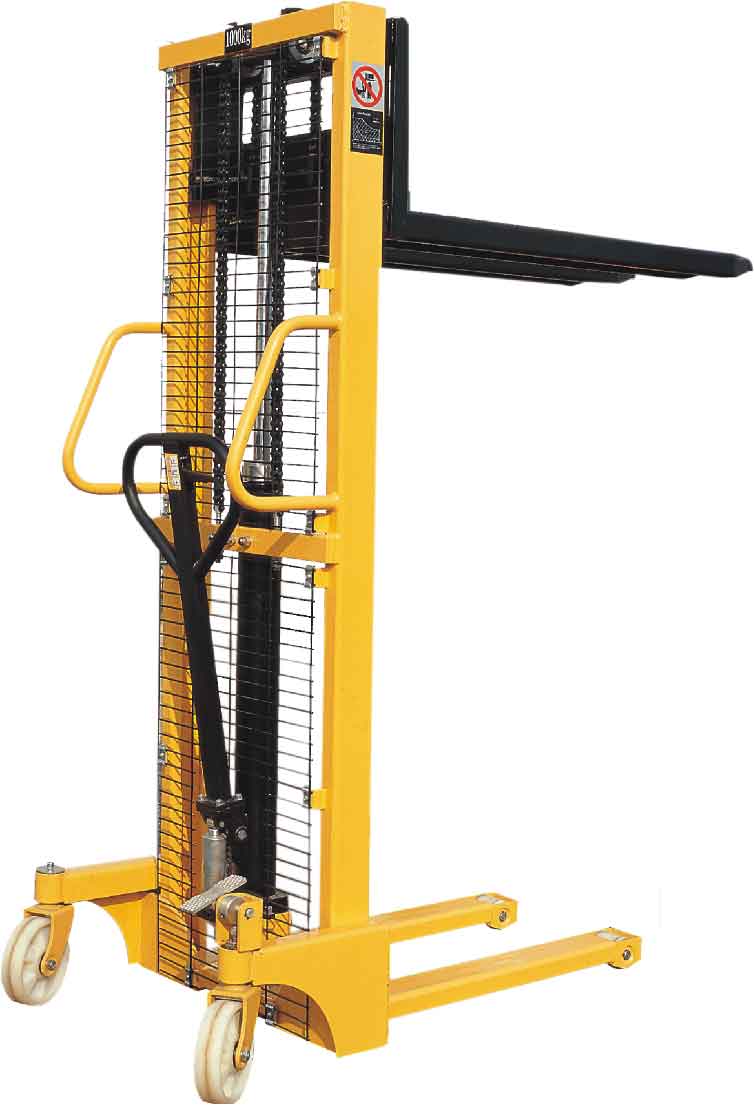

HK / SFH 10

ITEM/TYPE   HK / SFH10-W1.0M HK / SFH10-W1.2M
Capacity Q kg 1000 1000
Width of Leg mm 1000 1200
Min.fork height h mm 85 85
Max.fork height h1 mm 1600 1600
Min.mast height h1 mm 1980 1980
Size of fork e*s mm 150/160x60 150/160x60
Length of fork l mm 900/1150 900/1150
Width of overall fork(adjust/fixed)b5 mm 330~740/550 330~740/550
Radius of gyration mm 1250/1380 1250/1000
Fork rollers mm ?74x70 ?74x70
Big wheel mm ?180x50 ?180x50

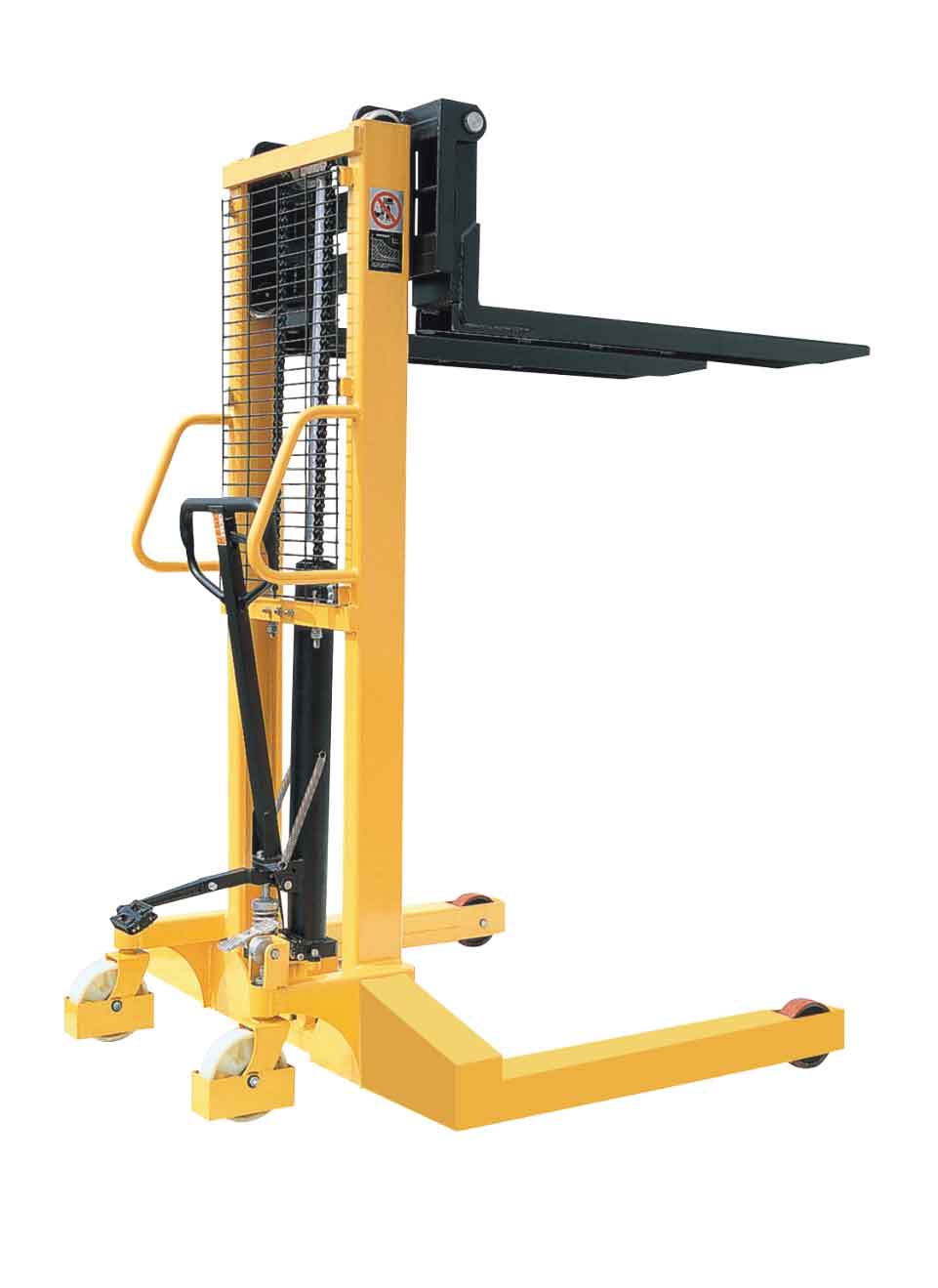

HK / SFH 15

ITEM/TYPE   HK / SFH15
Capacity Q kg 1500
Min.fork height h mm 85
Max.fork height h1 mm 1600
Min.mast height h1 mm 1980
Size of fork e*s mm 150/160x60
Length of fork mm 900/1150
Width of overall fork(adjust/fixed)b5 mm 330~740/550
Radius of gyration mm 1250
Weight kg 260
Fork rollers mm ?74x70
Big wheel mm ?180x50

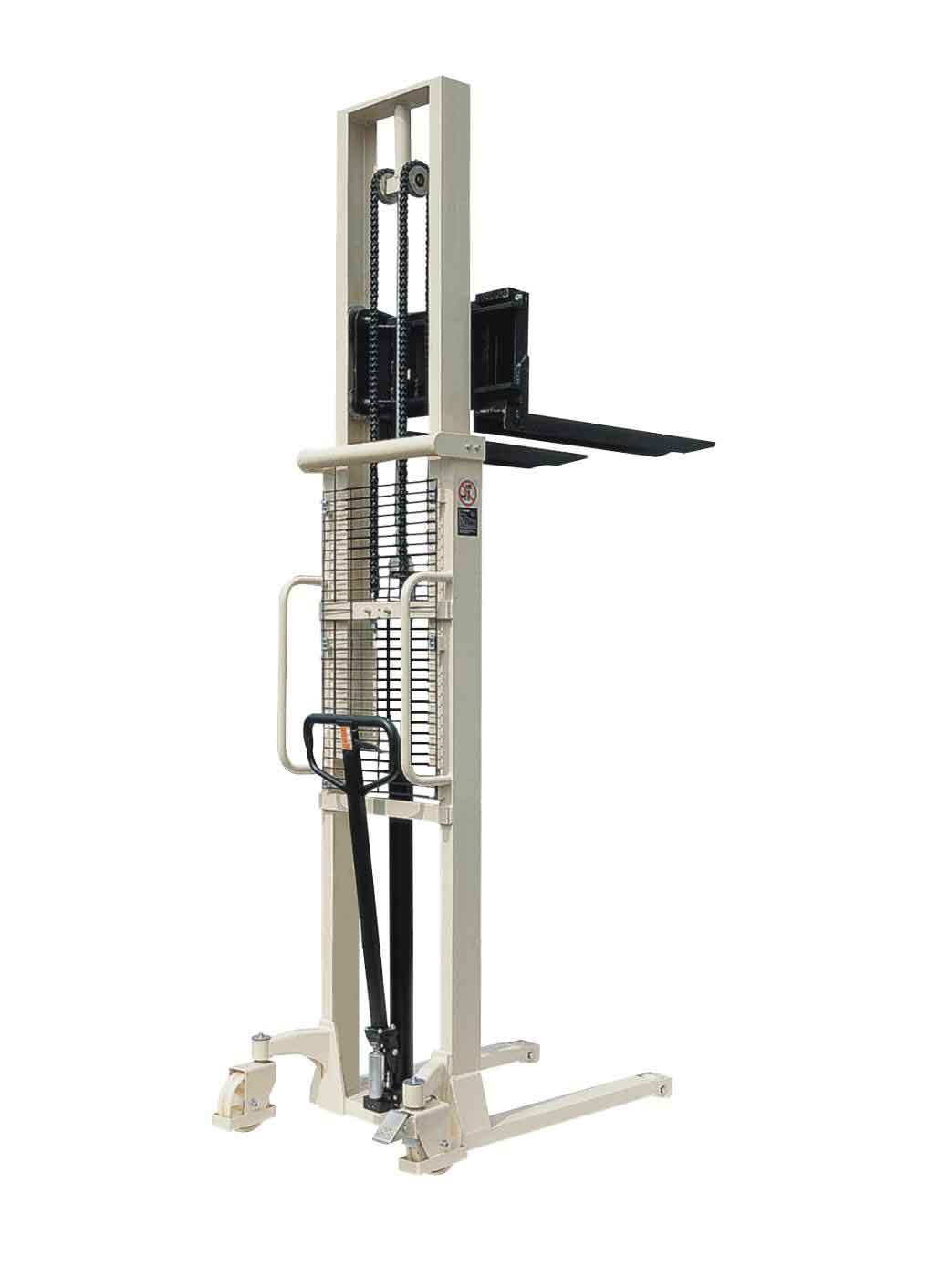

HK / EFS 1030B

ITEM/TYPE   HK / EFS1030B
Capacity Q Kg 1000
Load center c mm 450
Max.Fork Height mm 3000
Lowered Fork Height mm 80
Fork Adjust Width mm 300~740
Fork Width mm 140
Fork Length mm 900
Overall length mm 1496
Overall height mm 2060
Overall width mm 800
Ground Clearance mm 23
Front Wheel mm ?74x70
Rear Wheel mm ?180x50
Net Weight Kg 332
Features :
  • The hydraulic pump uses the newest technology
  • Special C-shaped steel helps provide strength and rigidity
  • Adjustable forks for various needs
  • Save time and manpower
  • Conforms to CE safety standard
  • Conforms to EN1757-1


Semi Electric Stacker

Our Semi Electric Stacker is in great demand in various application areas for its superb bulk handling capacity. The electric stacker is used in different applications owing to its flexible, easy to use and maintain features. We manufacture this electric stacker using premium quality raw material and latest techniques. The product meets the vital parameters on which a product of this specification is tested. This range is available in various sizes, dimensions and other related specifications as per the client requirements.

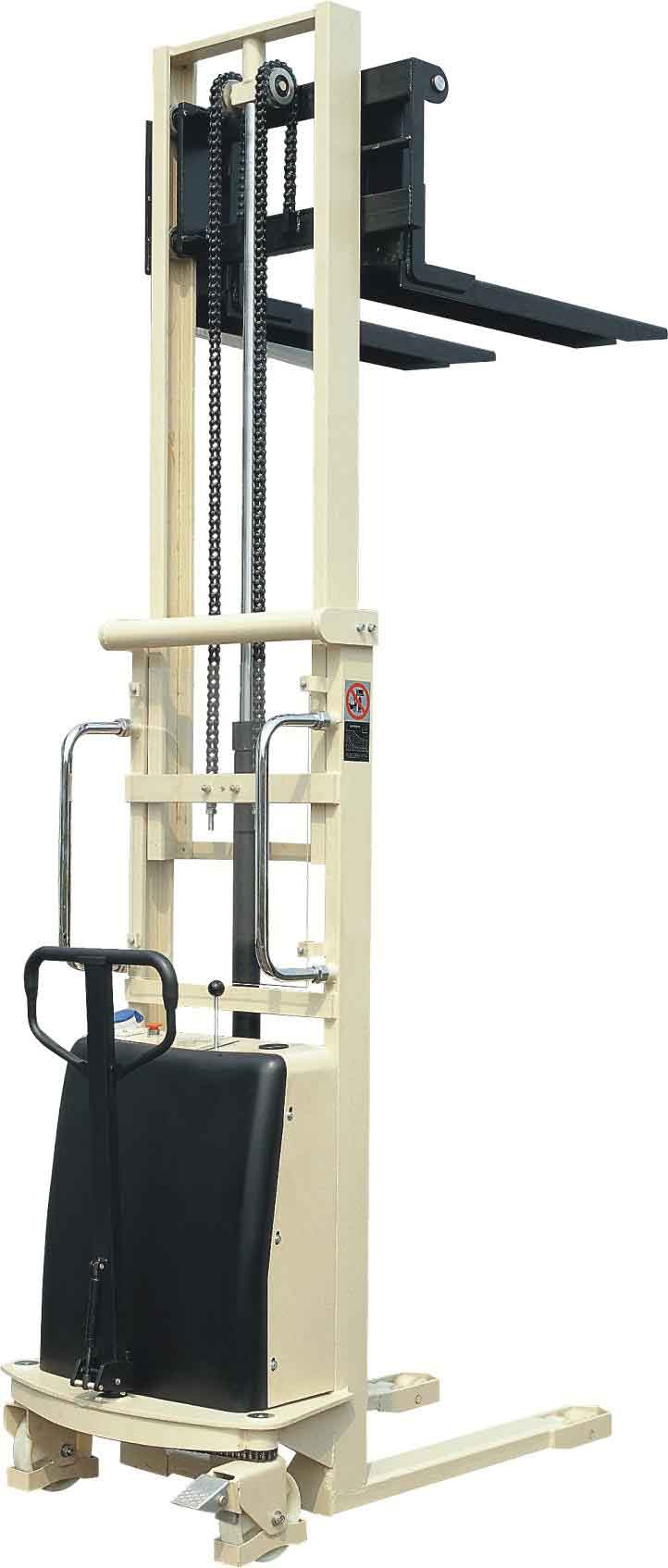

HK / SPN 10-30

Characteristics 1.2 Model of manufacture   HK / SPN10/30
1.3 Drive:(electric-battery or mains,diesel, petrol,fuel gas,manual)   manual
1.4 Type of operation(hand,pedestrian,standing, seated, order picker)   Pedestrian
1.5 Load Capacity /rated load Q(Kg) 1000
1.6 Load center distance C(mm) 600
1.8 Load distance ,centre of drive axle to fork X(mm) 673
1.9 Wheelbase y(mm) 1155
Weight 2.1 Weight(including battery) Kg 510
Wheels Chassis 3.1 Tyres(solid rubber, superelastic, nylon, polyurethane)   Nylon/PU
3.2 Tyre size,front mm 180x50
3.3 Tyre size,rear mm 102x70
3.5 Wheels, number front/rear   2/2
3.6 Track width,front b10(mm) 680
3.7 Track width,rear b11(mm) 556/1089
Basic Dimensions 4.2 Lowered mast height h1(mm) 2078
4.4 Lift height h3(mm) 2950
4.5 Extended mast height h4(mm) 3465
4.9 Height of handle min./max. H14(mm) 1165/705
4.15 Fork height lowered h13(mm) 50
4.19 Overall length L1(mm) 1605/1757
4.20 Length to face of forks L2(mm) 690
4.21 Overall width b1(mm) 777
4.22 Fork dimensions s/e/l(mm) 30*100*915(1067)
4.25 width over forks b5(mm) 210-720
4.32 Ground cleraance ,centre of wheelbase M2(mm) 29
4.33 Aisle width for pallets 1000x1200 crossways Ast(mm) 2288
4.34 Aisle with for pallets 800x1200 lengthways Ast(mm) 2267
4.35 Turning radius Wa(mm) 1405
Performance 5.2 Lift speed, laden/unladen mm/s 81/141
5.3 Lowering speed, laden/unladen mm/s 106/97
5.11 Parking brake   Manual
E-Motor 6.2 Lift motor rating at S3 15% kw 1.6
6.4 Battery voltage, norminal capacity K5 V/Ah 12/150
  Battery dimensions l*w*h mm 505*220*210
6.5 Battery weight Kg 45

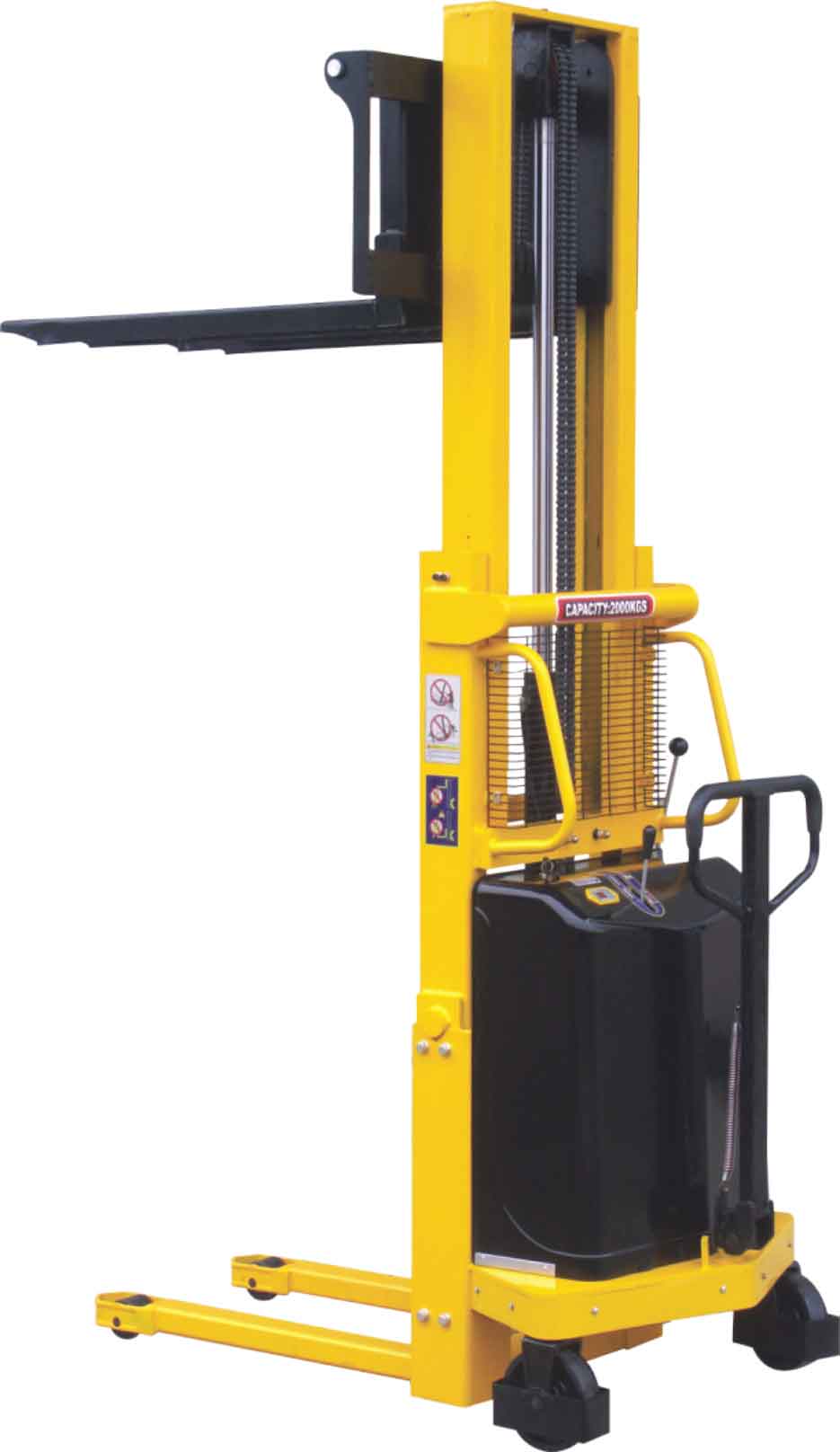

HK / SPN 15-30

Model Number   HK / SPN15/30
Capacity Q kg 1500
Load center C mm 600
Lifting height h mm 3000
Fork length l mm 1150
Fork width b5 mm 560
Minimum Turning radius Wa mm 2100
Lifting Motor V Kw 12/2.0
Battery V/Ah V/Ah 12/120
Charger V/Ah 220/12
Overall length l1 mm 1770
Overall width b mm 800
Overall height h1 mm 2020
Net Weight kg 490

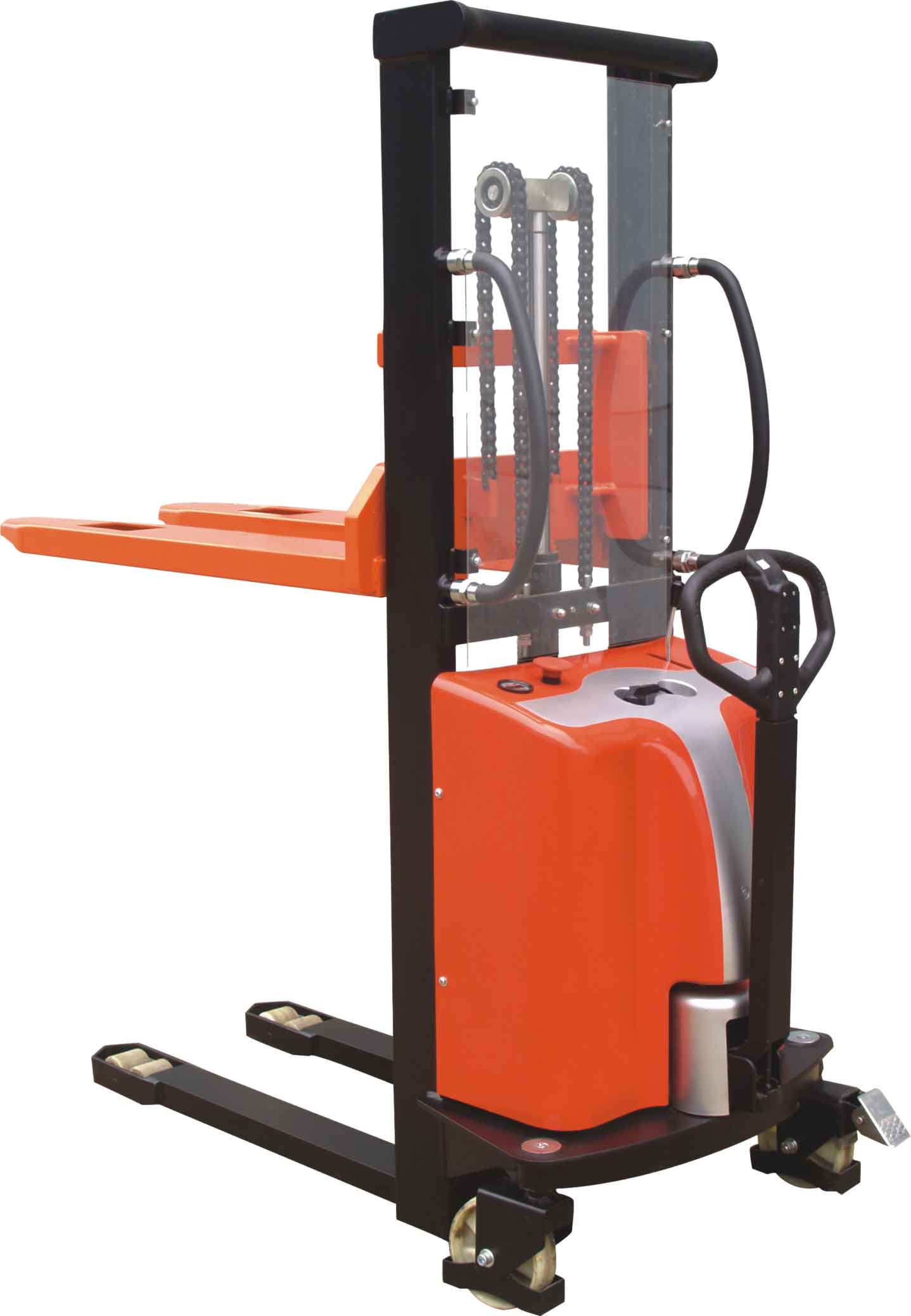

HK / SPM 15-16

Identification 1.2 Model of manufacture   HK / SPM1516
1.3 Drive:(electric-battery or mains,diesel, petrol,fuel gas,manual)   manual
1.4 Type of operation(hand, pedestrian, standing, seated, order picker)   Pedestrian
1.5 Load Capacity /rated load Q(Kg) 1500
1.6 Load center distance C(mm)
600
1.9 Wheelbase y(mm) 1160
Weights 2.1 Weight(including battery) Kg 436
Wheels,
Chassis
3.1 Tyres(solid rubber, superelastic, nylon, polyurethane)   Nylon/PU
3.2 Tyre size,front mm 180x50
3.3 Tyre size,rear mm 74x70
3.5 Wheels, number front/rear   2/4
3.6 Track width,front b10(mm) 658
3.7 Track width,rear b11(mm) 390/490
Basic Dimensions 4.2 Lowered mast height h1(mm) 1980
4.3 Free lift h2(mm) --
4.4 Lift height h3(mm) 1600
4.5 Extended mast height h4(mm) 1980
4.9 Height of handle min./max.

H14(mm)

790/1156
4.15 Fork height lowered h13(mm) 85
4.19 Overall length L1(mm) 1720/1580
4.20 Length to face of forks L2(mm) 610/670
4.21 Overall width b1(mm) 762
4.22 Fork dimensions s/e/l(mm) 60/182/1100
60/150/900
4.25 width over forks b5(mm) 570
330-640
4.33 Aisle width for pallets 1000x1200 crossways Ast(mm) 2145
4.34 Aisle with for pallets 800x1200 lengthways Ast(mm) 2175
4.35 Turning radius Wa(mm) 1280
Performance 5.2 Lift speed, laden/unladen mm/s 65/100
5.3 Lowering speed, laden/unladen mm/s 85/70
5.11 Parking brake   Manual
E-Motor 6.2 Lift motor rating at S3 15% kw 1.5
6.4 Battery voltage, norminal capacity K5 V/Ah 12/150
6.5 Battery weight Kg 45

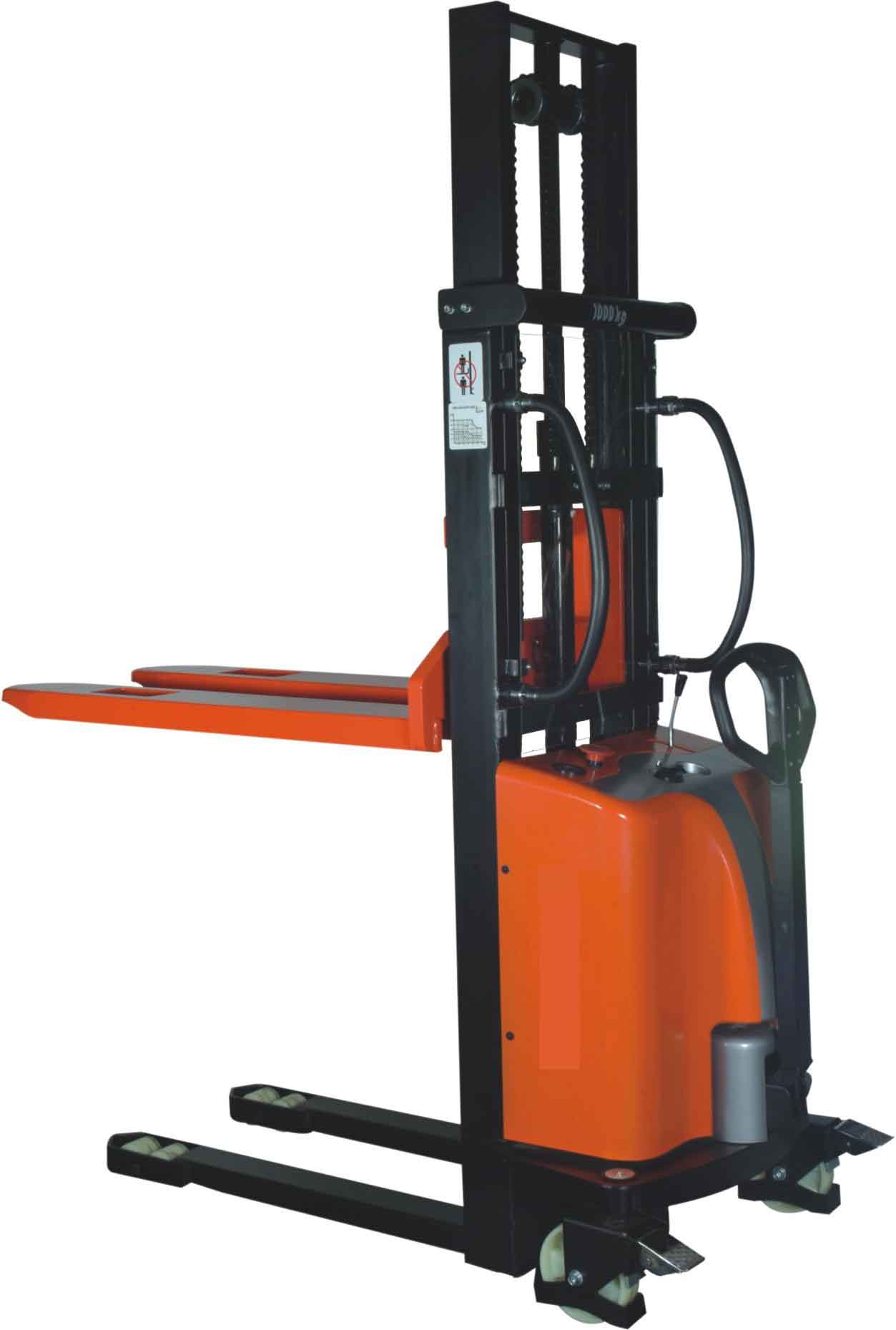

HK / SPM 15-35

Identification 1.2 Model of manufacture   HK / SPM1535
1.3 Drive:(electric-battery or mains,diesel, petrol,fuel gas,manual)   manual
1.4 Type of operation(hand, pedestrian, standing, seated, order picker)   Pedestrian
1.5 Load Capacity /rated load Q(Kg) 1500
1.6 Load center distance C(mm)
600
1.9 Wheelbase y(mm) 1160
Weights 2.1 Weight(including battery) Kg 570
Wheels,
Chassis
3.1 Tyres(solid rubber, superelastic, nylon, polyurethane)   Nylon/PU
3.2 Tyre size,front mm 180x50
3.3 Tyre size,rear mm 74x70
3.5 Wheels, number front/rear   2/4
3.6 Track width,front b10(mm) 658
3.7 Track width,rear b11(mm) 390/490
Basic Dimensions 4.2 Lowered mast height h1(mm) 2280
4.3 Free lift h2(mm) -
4.4 Lift height h3(mm) 3500
4.5 Extended mast height h4(mm) 4020
4.9 Height of handle min./max.

H14(mm)

790/1156
4.15 Fork height lowered h13(mm) 85
4.19 Overall length L1(mm) 1720/1580
4.20 Length to face of forks L2(mm) 610/670
4.21 Overall width b1(mm) 762
4.22 Fork dimensions s/e/l(mm) 60/182/1100
60/150/900
4.25 width over forks b5(mm) 570
330-640
4.33 Aisle width for pallets 1000x1200 crossways Ast(mm) 2145
4.34 Aisle with for pallets 800x1200 lengthways Ast(mm) 2145
4.35 Turning radius Wa(mm) 1280
Performance 5.2 Lift speed, laden/unladen mm/s 65/100
5.3 Lowering speed, laden/unladen mm/s 85/70
5.11 Parking brake   Manual
E-Motor 6.2 Lift motor rating at S3 15% kw 1.5
6.4 Battery voltage, norminal capacity K5 V/Ah 12/150
6.5 Battery weight Kg 45


Power Stacker

We are engaged in providing an exclusive variety of Power Stackers that are precisely engineered by our expert designers. These are fabricated using high grade raw material and latest technologies in order to remain at par with international quality standards. These stackers find their maximum application in various industrial sectors.

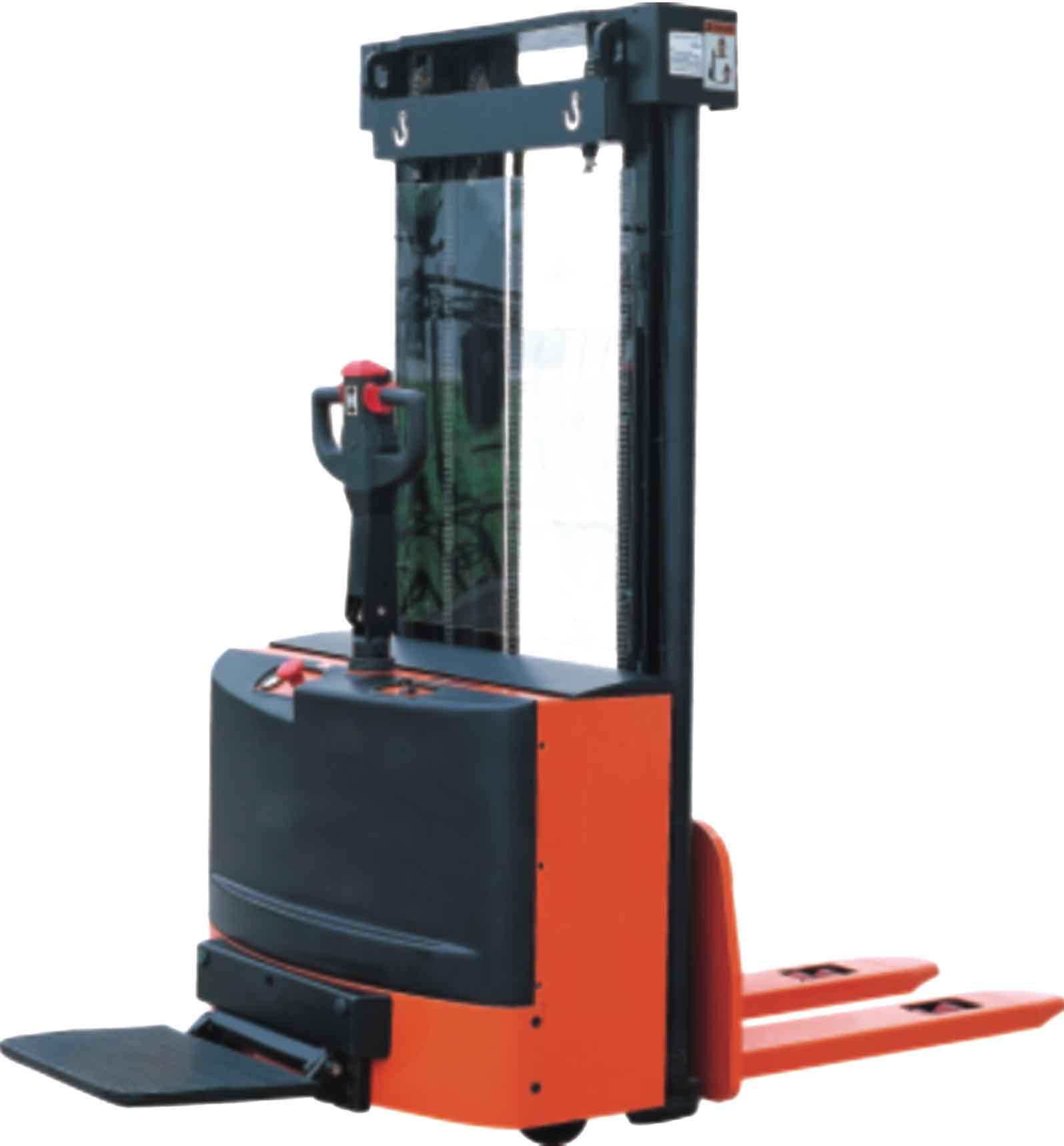

HK / CG 1646

  • Speed automatically reduces when driving with the fork at a height of 12" or higher.
  • Small turn radius makes it suitable for narrow passage ways.
  • The CURTIS electronic controller from helps provide plenty of low end torgue while increasing the motor and battery life.
  • Foot pedal reduce fatigue.
  • Conforms to ergonomic requirements.
  • Conforms to EN 1726-1 and EN 1175-1
  • Smooth travel and lift with excellent controls to reduces product damages and increases productivity.
  • Lift limit switch operates at maximum lift height to shut off pump motor.
  • A heavy-duty 24-volt electrical system provides good travel and lift speeds.
  • High quality hydraulic pump assures very little noise, maximum efficiency and durability.
  • Drive units is equipped an electromagnetic brake that is spring applied and electrically released. The brake is activated by the control handle position. The handle is ergonmically designed with a raise, lower and horn button.

Residual Capacity at different lifting height :
Up to h3 mm ACTUAL CAPACITY (Q) kg
2500 1600 1000
3700 1000 600
4600 800 500
Load centre distance (C)mm 600 700


Identification 1.2 Manufacturer's type designation   HK / CG1646
1.3 Drive:electric(battery or mains),diesel, petrol,fuel gas,manual   electric
1.4 Type of operation:hand,pedestrian,stand ing,seated, order-picker   Pedestrian
1.5 Load Capacity /rated load Q (t) 1.6
1.6 Load center distance C mm
600
1.8 Load distance, centre of drive axle to fork X mm 711
1.9 Wheelbase y mm 1310
Weights 2.1 Service Weight Kg 1365
2.2 Axle loading, laden front/rear Kg 1410/1555
2.3 Axle loadings, unladen front/rear Kg 1010/355
Wheels?? Chassis 3.1 Tyres:solid rubber, superelastic, pneumatic, polyurethane)   polyurethane
3.2 Tyre size, front   250x78
3.3 Tyre size, rear   80x70 1)
3.4 Additional wheels(dimensions)   150x54
3.5 Wheels, number front/rear(x=driven wheels)   1x+2/4
3.6 Track width,front b10(mm) 880
3.7 Track width,rear b11(mm) 390/515
Basic Dimensions 4.2 Lowered mast height h1(mm) 2098
4.4 Lift height h3(mm) 4514
4.5 Extended mast height h4(mm) 5100
4.9 Height of tiller in drive position min./max.

h14(mm)

965/1365
4.15 Lowered height h13(mm) 86
4.19 Overall length l1(mm) 1915
4.20 Length to face of forks l2(mm) 765
4.21 Overall width b1(mm) 1050
4.22 Fork dimensions s/e/l(mm) 60/180/1150
4.25 Width over forks b5(mm) 570/695
4.32 Ground clearance, center of wheelbase m2(mm) 50
4.33 Aisle width for pallets 1000x1200 crossways Ast(mm) 2271
4.34 Aisle width for pallets 800x1200 lengthways Ast(mm) 2236
4.35 Turning radius Wa(mm) 1605
Performance Data 5.1 Travel Speed, laden/unladen km/h 5.1/5.5
5.2 Lift speed, laden/unladen mm/s 113/160
5.3 Lowering speed, laden/unladen mm/s 95/100
5.8 Max.gradient performance,  laden/unladen % 6/12
5.10 Service brake   Electromagnetic
E-Motor 6.1 Drive motor rating s2 60min kw 1.2
6.2 Lift motor rating at s3 15% kw 3.0
6.3 Battery acc. To DIN, no   4PzS
6.4 Battery voltage, norminal capacity V/Ah 24/280
Others 8.1 Type of drive control   MOSFET Control
8.4 Sound level at driver's ear acc.to EN12053 dB(A) 67

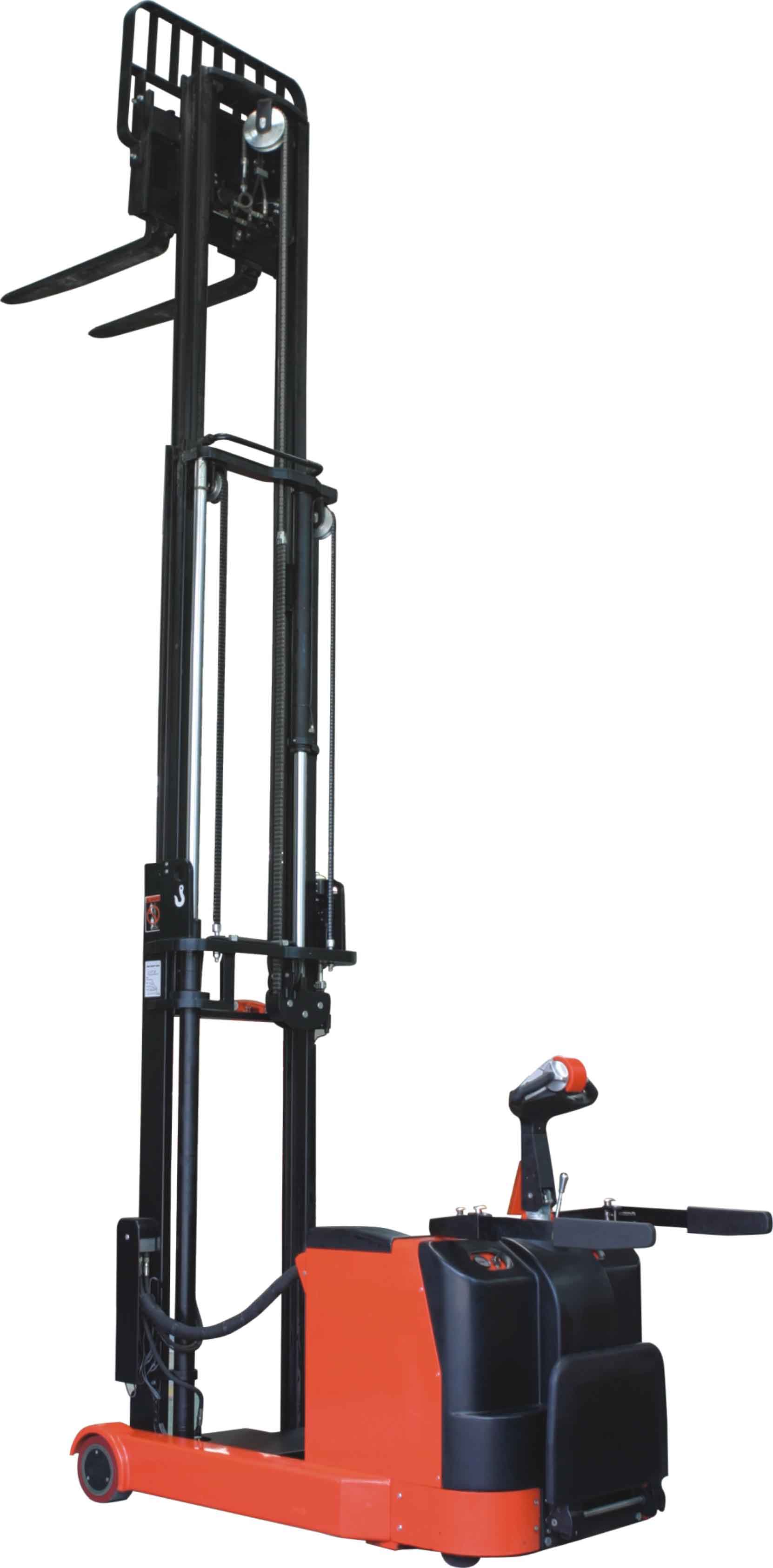

HK / CY 1345

  • power reach stacker is newly designed available within our range with capacity 1300kg with lift heights from 1.8m up to 4.5m. Our stacker is configured to provide the optimum chassis/battery/mast combination according to the Ergonomic requirements of the application.
  • With ZF driving wheel from Germany, makes it more powerful.
  • The fork can be up/down forward/backward and tilt.

Residual Capacity at different lifting height :
Up to h3 mm ACTUAL CAPACITY (Q) kg
2500 1300 700
3000 1000 600
3700 900 500
4500 800 400
Load centre distance (C)mm 600 700


Identification 1.2 Manufacturer's type designation   HK / CY1345
1.3 Drive:electric(battery or mains),diesel, petrol,fuel gas,manual   Electric
1.4 Type of operation:hand, pedestrian, stand ing, seated, order-picker)   Pedestrian
1.5 Load Capacity /rated load Q (t) 1.3
1.6 Load center distance C mm
500
1.8 Load distance, centre of drive axle to fork X mm 418
1.9 Wheelbase y mm 1355
Weights 2.1 Service Weight Kg 2460
2.2 Axle loading, laden front/rear Kg 1770/1990
2.3 Axle loading, unladen front/rear Kg 1820/640
Wheels£¬ Chassis 3.1 Tyres:solid¡¢ rubber, superelastic, pneumatic, polyurethane)   polyurethane
3.2 Tyre size, front   230x70
3.3 Tyre size, rear   210x85
3.4 Additional wheels(dimensions)   150x54
3.5 Wheels, number front/rear(x=driven wheels)   1x+2/4
3.6 Track width,front b10(mm) 620
3.7 Track width,rear b11(mm) 993
Basic Dimensions 4.1 Mast/fork carriage tilt forward/backward a/?¡ã) 2/4
4.2 Lowered mast height h1(mm) 2075
4.3 Free lift h2(mm) 1490
4.4 Lift height h3(mm) 4460
4.5 Extended mast height h4(mm) 5430
4.9 Height of tiller in drive position min./max.

h14(mm)

984/1365
4.15 Lowered height h13(mm) 40
4.19 Overall length l1(mm) 2125(2325)
4.20 Length to face of forks l2(mm) 937
4.21 Overall width b1(mm) 1104
4.22 Fork dimensions s/e/l(mm) 35/100/950(1150)
4.25 Width over forks b5(mm) 200~720
4.26 Distance between supports arms/loading surfaces b4(mm) 784
4.28 Reach distance l4(mm) 580
4.32 Ground clearance, center of wheelbase m2(mm) 59
4.33 Aisle width for pallets 1000x1200 crossways Ast(mm) 2436
4.34 Aisle width for pallets 800x1200 lengthways Ast(mm) 2478
4.35 Turning radius Wa(mm) 1600
4.37 Length across wheel arms l7(mm) 1175
Performance Data 5.1 Travel Speed, laden/unladen km/h 6.0/7.0
5.2 Lift speed, laden/unladen mm/s 110/165
5.3 Lowering speed, laden/unladen mm/s 300/220
5.8 Max.gradient performance,  laden/unladen % 5/8
5.10 Service brake   Electromagnetic
E-Motor 6.1 Drive motor rating s2 60min kw 1.5
6.2 Lift motor rating at s3 15% kw 3.0
6.3 Battery acc. toDIN, no   5PzS
6.4 Battery voltage, norminal capacity V/Ah 24/400
Others 8.1 Type of drive control MOSFET Control
8.4 Sound level at driver's ear acc.to EN12053 dB(A) 67

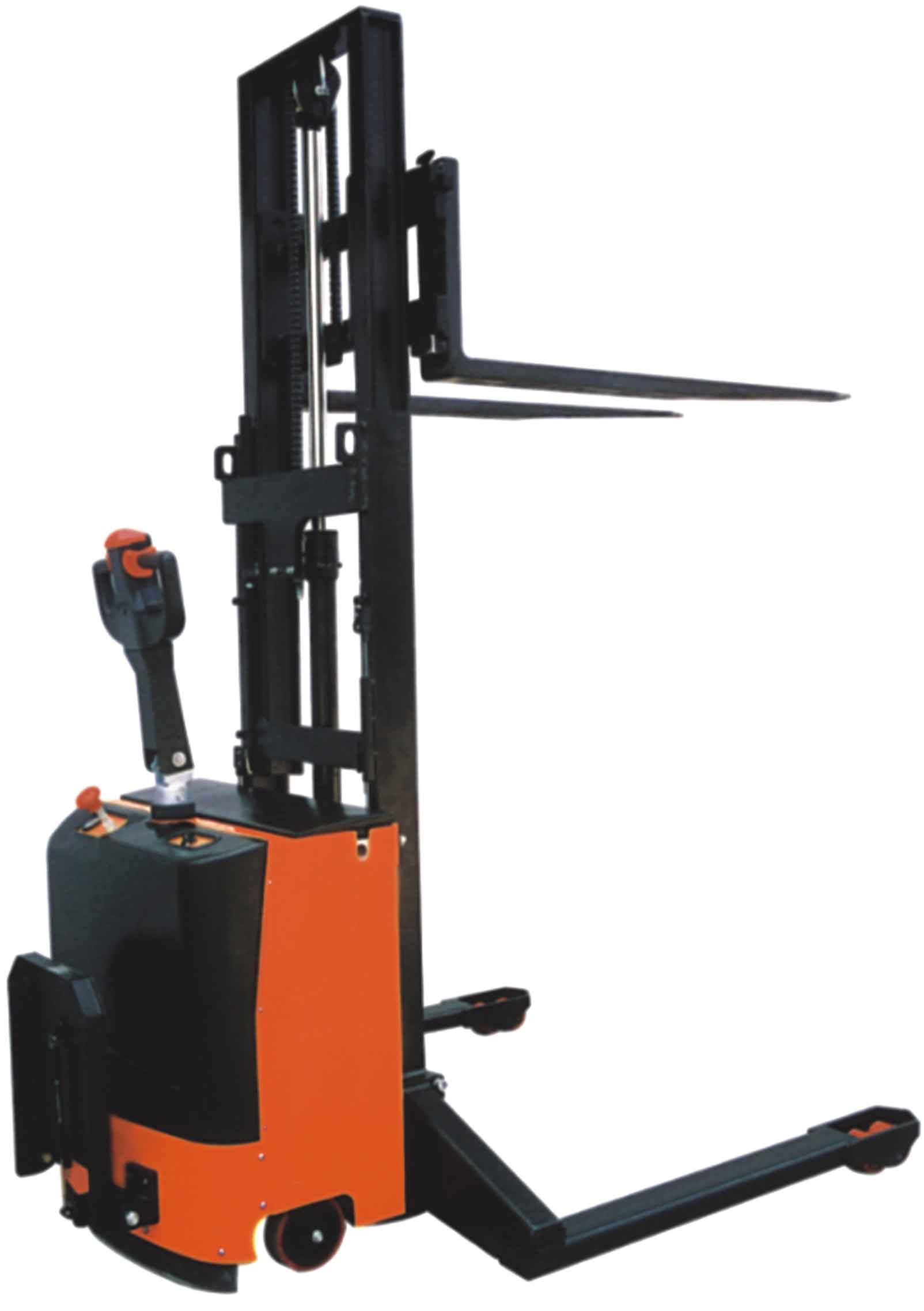

HK / CK 1232

Identification

1.2 Manufacturer’ s type designation   HK / CK1232
1.3 Drive: electric(battery or mains), diesel, petrol, fuel gas, manual   electric
1.4 Type of operation: hand, pedestrian, stand ing, seated, order-picker   Pedestrian
1.5 Load Capacity /rated load Q (t) 1.2
1.6 Load center distance C mm 600
1.8 Load distance, centre of drive axle to fork X mm 693
1.9 Wheelbase y mm 1200
Weights

2.1 Service Weight Kg 895
2.2 Axle loading, laden front/rear Kg 995/1100
2.3 Axle loadings, unladen front/rear Kg 660/235
Wheels, Chassis

3.1 Tyres: solid rubber, superelastic, pneumatic, polyurethane)   polyurethane
3.2 Tyre size, front   250x78
3.3 Tyre size, rear   80x70 1)
3.4 Additional wheels(dimensions)   150x54
3.5 Wheels, number front/rear(x=driven wheels)   1x+2/4
3.6 Track width, front b10(mm) 685
3.7 Track width, rear b11(mm) 1394
Basic Dimensions

4.2 Lowered mast height h1(mm) 2095
4.3 Free lift h2(mm) 100
4.4 Lift height h3(mm) 3.60
4.5 Extended mast height h4(mm) 3725
4.9 Height of tiller in drive position min. /max. h14(mm) 965/1365
4.15 Lowered height h13(mm) 35
4.19 Overall length l1(mm) 1730
4.20 Length to face of forks l2(mm) 780
4.21 Overall width b1(mm) 805
4.22 Fork dimensions s/e/l(mm) 35/100/950(1150)
4.25 Width over forks b5(mm) 621-252
4.32 Ground clearance, center of wheelbase m2(mm) 50
4.33 Aisle width for pallets 1000x1200 crossways Ast(mm) 2250
4.34 Aisle width for pallets 800x1200 lengthways Ast(mm) 2250
4.35 Turning radius Wa(mm) 1490
Performance Data

5.1 Travel Speed, laden/unladen km/h 5.2/5.5
5.2 Lift speed, laden/unladen mm/s 105/150
5.3 Lowering speed, laden/unladen mm/s 100/95
5.8 Max. gradient performance, laden/unladen % 6/12
5.10 Service brake   Electromagnetic
E-Motor

6.1 Drive motor rating s2 60min kw 1.2
6.2 Lift motor rating at s3 15% kw 2.2
6.3 Battery acc. To DIN, no   3PzS
6.4 Battery voltage, norminal capacity V/Ah 24/210
Others

8.1 Type of drive control   MOSFET Control
8.4 Sound level at driver’ s ear acc. to EN12053 dB(A) 67

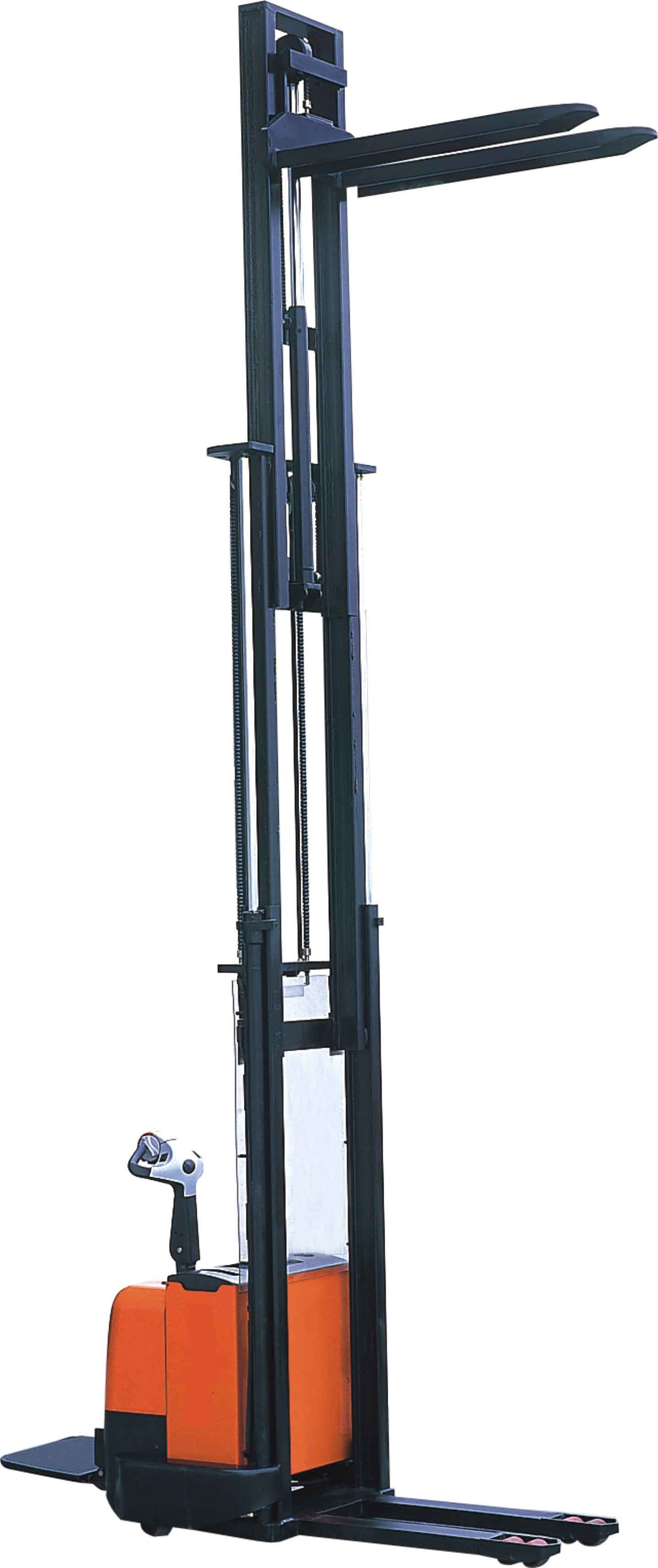

HK / CS 1546

Features 1.2 Type No.   HK / CS1546
1.3 Power (electric, diesel, gasoline, liquefied petroleum gas)   Electric
1.4 Driving mode (hand, pedestrian, stand-on, sit-down, unit-pick)   Pedestrian
1.5 Rated loading capacityQ Q (t) 1.5
1.6 Load centre distanceC C mm 600
1.8 Front overhang distanceX X mm 765
1.9 TrackY y mm 1420
Weight 2.1 Weight (with accumulator) Kg 1315
2.2 Axle load  at full loadDrive side/load side Kg 1360/1455
2.3 Axle load  without loadingDrive side/load side Kg 970/345
Wheel 3.1 Tires (rubber wheels, high-performance elastomer, polyurethane wheels)   Polyurethane
3.2 Tyre size, drive side mm 230x75
3.3 Tyre size, load side mm 80x70
3.4 Dimension of steering wheel mm 124x60
3.5 Wheel numbers (X=driving wheel) Drive side/load side mm 1x+2/4
3.6 Wheel track (front)Drive side b10 b10(mm) 680
3.7 Wheel track (back)load side b11 b11(mm) 395
Dimension Capability 4.2 Lowered mast height h1(mm) 2105
4.3 Free lift h2(mm) 1505
4.4 Lift heighth3 h3(mm) 4515
4.5 Extended mast height h4(mm) 5115
4.9 Height of lever in middle positionh14 h14(mm) 865/1287
4.15 Height of fork when being loweredh13 h13(mm) 85
4.19 Overall lengthl1 l1(mm) 2065
4.20 Length of truck bodyl2 l2(mm) 915
4.21 Width of truck bodyb1 b1(mm) 915
4.22 Fork dimensions/e/l s/e/l(mm) 60/180/1150
4.25 Lateral distance of forkb5 b5(mm) 575
4.32 Distance from wheel base centre to groundm2 m2(mm) 25
4.33 Right angle stacking aisle width, pallet1000X1200(1200 placed along fork)Ast** Ast(mm) 2354
4.34 Right angle stacking aisle width, pallet 800X1200(1200 placed along fork)Ast** Ast(mm) 2300
4.35 Turning radiusWa Wa(mm) 1710
Motor 5.1 Driving speedfull load/ no load km/h 5/5.5
5.2 Lifting speedfull load/ no load mm/s 106/170
5.3 Lowering speed full load/ no load mm/s 96/80
5.8 Climbing capacity full load/no load % 6/12
5.10 Parking brake   Electromagnetic
    6.1 Drive motor power kw kw 1.8
6.2 Lift motor power kw kw 3
6.3 Accumulator, U.K. BS standard, no   4VBS
6.4 Voltage of accumulator, capacity (discharge rate5 hours) V/Ah 24/280
Others 8.1 Accumulator weight (+/-5%)   MOSFET Control
8.2 Battery dimension, length X width X height dB(A) 68

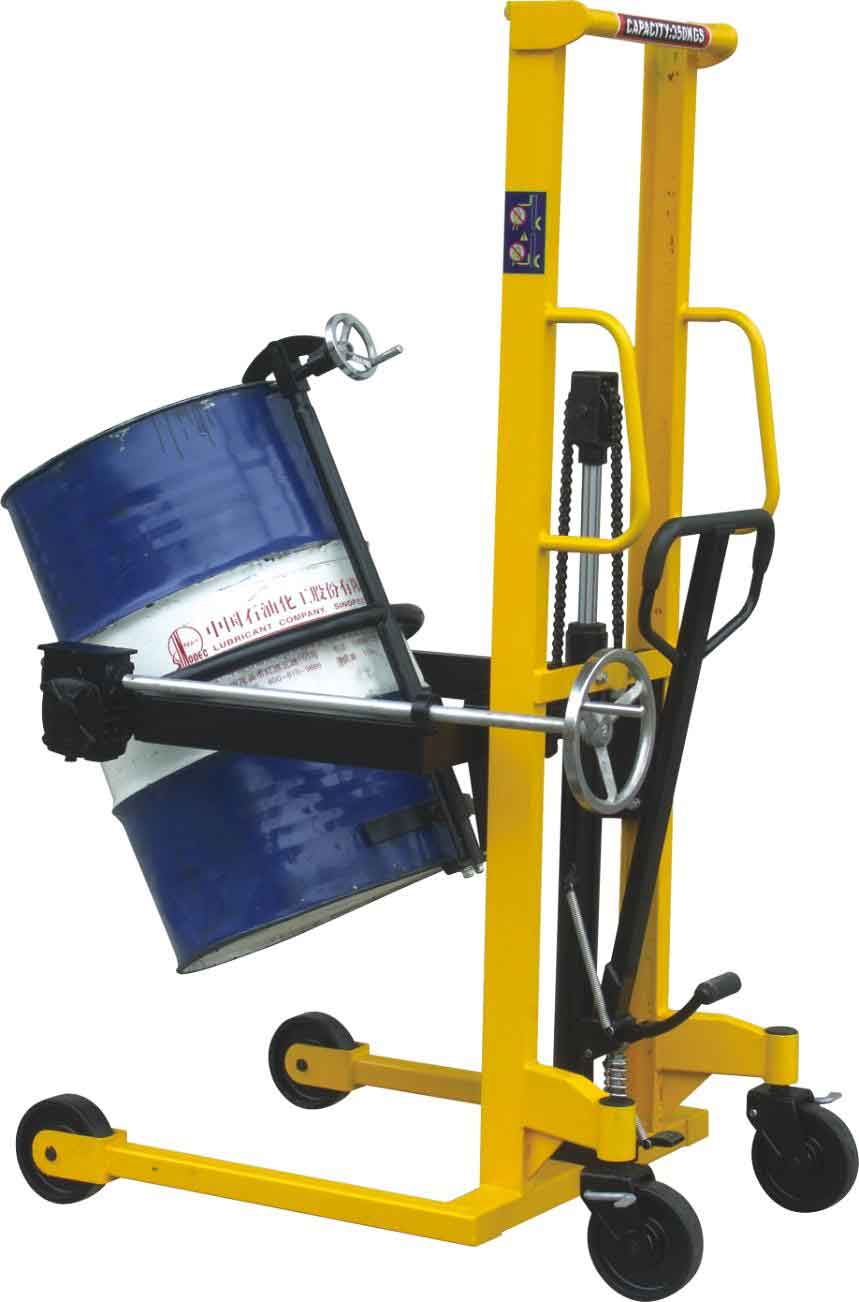

Drum Lifting & Tilting Stacker

we are known as one of the leading manufacturers and suppliers of drum handling equipments in the country. Our company designs and develops these equipments for standard drums. All the drum clamping, lifting and tilting stackers are constructed with strong raw materials to ensure strength and excellent results during operation. Our lifting and tilting stackers have vast demand in the competitive market because all the items are finished with special care keeping in mind the market trends.

HK / NBF 35

Model No.   HK / NBF35
Rated Capacity Kg 350
Lifting Height mm 1425
Overall Length mm 1190
Overall Width mm 890
Overall Height mm 2020
Net Weight Kg 155
Features :
  • Ideal for applications where barrels are stacked, transported or being poured of stacking, transporting and poring oil aslant.
  • The slope of the barrel is controlled by turning the control handle.
