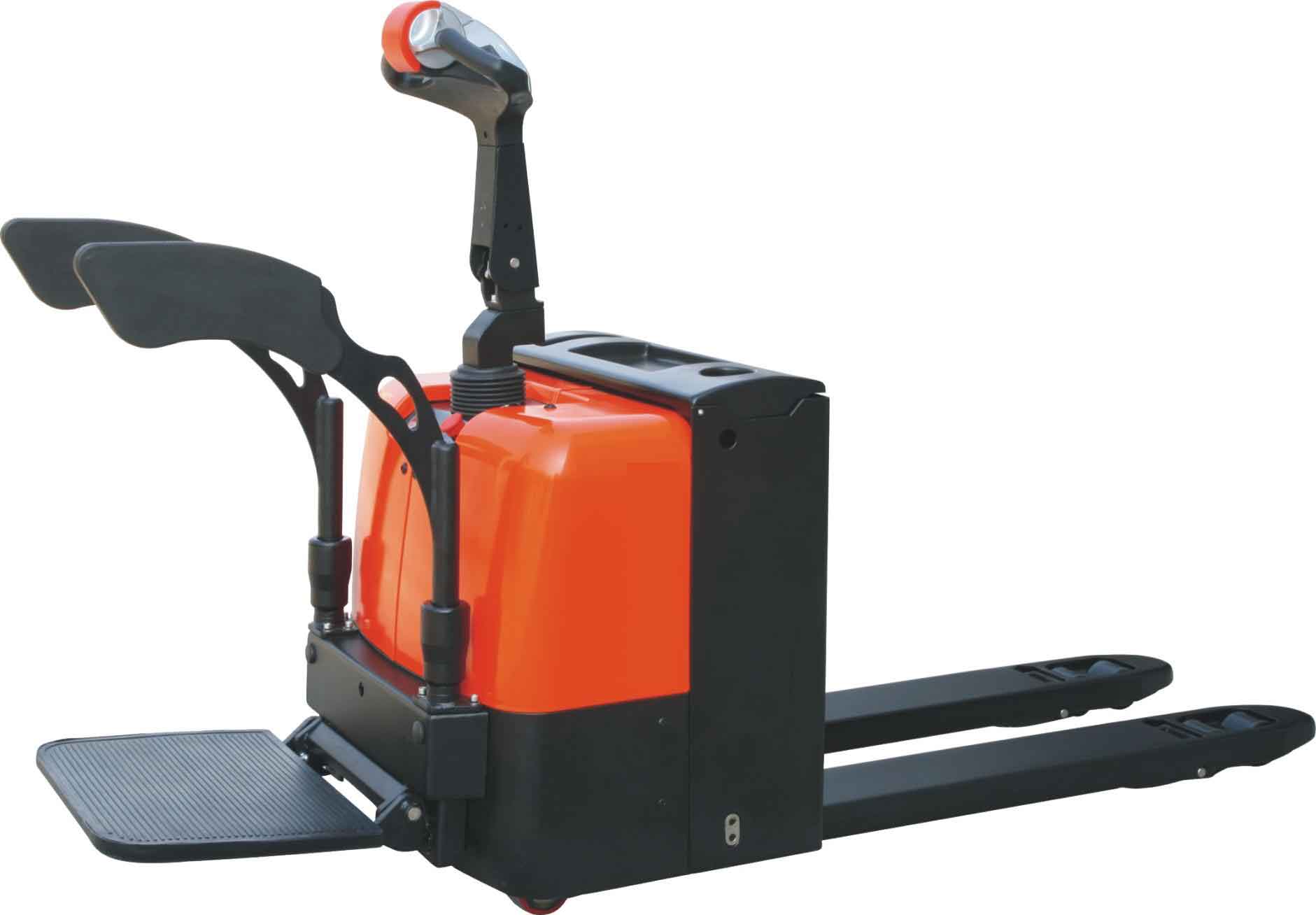

Power Pallet Truck
We are enlisted amongst the prominent names in the industry engaged in manufacturing and supplying quality tested range of Power Pallet Trucks. Our products are available with different technical specifications and are used in warehousing facility to carry products from one end to another. These are available with attached castors for easy movements. Fabricated utilizing quality approved components, Power Pallet Trucks are acclaimed for durable standards.
Heavy Duty Power Pallet Truck
We are Largest of the leading manufacturers and suppliers of a wide range of Heavy Duty Power Pallet Trucks Our range is manufactured using premium quality raw materials and is extensively used in various industries.
HK / WP LPT 20
| Features | 1.2 | Type No. | HK / WP-LPT20 | ||
| 1.3 | Power (electric, diesel, gasoline, liquefied petroleum gas) | Electric | |||
| 1.4 | Driving mode (hand, pedestrian, stand-on, sit-down, unit-pick) | Pedestrian | |||
| 1.5 | Rated loading capacity | kg | 2000 \ 2200 | ||
| 1.6 | Load centre distancec (mm) | mm | 600 | ||
| 1.8 | Front overhang distanceX | mm | 963/1033 | ||
| 1.9 | TrackY | mm | 1368 | ||
| Weight | 2.1 | Weight (with accumulator) | kg | 520 | |
| 2.2 | Axle load at full loadDrive side/load side | kg | 1040/1480 | ||
| 2.3 | Axle load without loadingDrive side/load side | kg | 405/115 | ||
| wgeel | 3.1 | Tires (rubber wheels, high-performance elastomer, Pneumatic wheels, polyurethane wheels) | polyurethane wheels | ||
| 3.2 | Tyre size, drive side | mm | ?230x75 | ||
| 3.3 | Tyre size, load side | mm | ?84x70/?74x70* | ||
| 3.4 | Dimension of steering wheel | ?100x40 | |||
| 3.5 | Wheel numbers (X=driving wheel) Drive side/load side | 1x +2/ 2/1x +2/ 4 | |||
| 3.6 | Wheel track (front)Drive side b10 | mm | 500 | ||
| 3.7 | Wheel track (back)load side b11 | mm | 380/525 | ||
| Dimension | 4.4 | Lift heighth3 | mm | 120 | |
| 4.9 | Height of lever in middle positionh14 | mm | 1323 | ||
| 4.15 | Height of fork when being lowered h13 | mm | 85/75 | ||
| 4.19 | Overall length l1 | mm | 1815/1885 | ||
| 4.20 | Length of truck bodyl2 | mm | 665 | ||
| 4.21 | Width of truck bodyb1 | mm |
726 |
||
| 4.22 | Fork dimensions/e/l | mm | 60/160/1150(1220) | ||
| 4.25 | Lateral distance of forkb5 | mm | 540/685 | ||
| 4.32 | Distance from wheel base centre to groundm2 | mm | 25 | ||
| 4.34 | Right angle stacking aisle width, pallet 800X1200 (1200 placed along fork)Ast | mm | 2305/2344 | ||
| 4.35 | Turning radiusWa | mm | 1640/1710 | ||
| Capability | 5.1 | Driving speedfull load/ no load | km/h | 5.0 / 5.2 | |
| 5.2 | Lifting speedfull load/ no load | mm/s | 27 / 35 | ||
| 5.3 | Lowering speed full load/ no load | mm/s | 42 / 27 | ||
| 5.8 | Climbing capacity full load/no load | % | 10/16 | ||
| 5.10 | Parking brake | Electromagnetic brake | |||
| Motor | 6.1 | Drive motor power kw | kW | 1.5 | |
| 6.2 | Lift motor power kw | kW | 0.8 | ||
| 6.3 | Accumulator, U.K. BS standard, no | 3VBS | |||
| 6.4 | Voltage of accumulator, capacity (discharge rate5 hours) | V/Ah | 24 / 210 | ||
| 6.5 | Accumulator weight (+/-5%) | kg | 185 | ||
| Battery dimension, length X width X height | mm | 645 / 196 / 570 | |||
| Others | 8.1 | Driving and control methods | FET control | ||
| 8.4 | Noise heard by the driver | dB(A) | <70 | ||
| Turning angle | ° | 180 | |||
